CE Cable

Solid conductor 4 pair U/UTP Cat5e cable with PVC Grey outer sheath Supplied on convenient 100m reels.

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in a heat resistant PVC material.

Tested to 100 MHz, the guaranteed performance of this cable meets the ANSI/TIA 568C.2 and ISO/IEC 11801 requirements for PS-NEXT, attenuation, return loss, attenuation-to-crosstalk ratio (ACR)and impedance, making it ideal for high-end transmission links supporting today’s networking protocols.

Key Features: Supplied as 100 metre reels for the smaller job
Cat5e 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors
Rip cord for ease of stripping outer sheath
CPR Compliant to Eca Standard
Supports Gigabit Ethernet
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Rip Cord One Rip Cord Jacket Materials Flame Retardent PVC   Diameter Nominal 5.0 mm Colour Grey RAL 7035 Construction U/UTP   No. of Pairs 4 Category 5e Number of Cores 8 Length 100 Metres Reaction to fire class EN 13501-6 Eca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

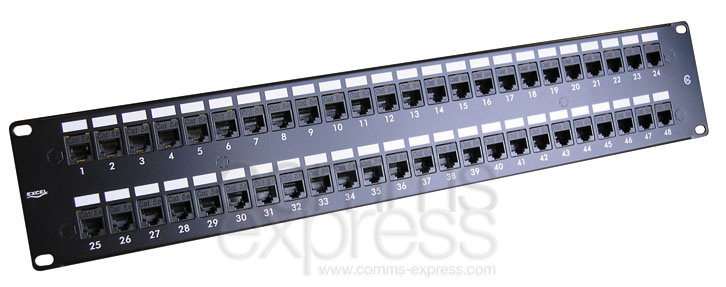

Cat5e Patch Panels Cat5e Modules

Solid conductor 4 pair Cat5e U/UTP cable with PVC Grey outer sheath.

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in a heat resistant PVC material.

The printing detail on the sheath, includes the cables part number, specification details and a 305-0 reverse metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box.

Key Features: 305 metres in an easy to pull box
Cat5e 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Rip cord for ease of stripping outer sheath.
Supports Gigabit Ethernet
CPR Compliant to Eca Standard
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Sequential reverse metre markings (305-0)
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Rip Cord One Rip Cord Jacket Materials Flame Retardent PVC   Diameter Nominal 5.0 mm Colour Grey RAL 7035 Construction U/UTP   No. of Pairs 4 Category 5e Number of Cores 8 Length 305 Metres Reaction to fire class EN 13501-6 Eca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat5e Patch Panels Cat5e Modules

Cat5e Cable  - Solid conductor 4 pair U/UTP cable with low smoke zero halogen outer sheath.

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in either Purple or Orange low smoke zero halogen material, which complies with the requirements of IEC332-1.

The printing detail on the sheath, includes the cables part number, specification details and a 305-0 reverse metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box.

Key Features:

305 metres in an easy to pull box
Available in a Orange or Purple LSOH Sheath
Cat5e 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Rip cord for ease of stripping outer sheath.
CPR Compliant to Dca Standard
Supports Gigabit Ethernet
Manufactured and tested to ISO 11801, EN 50288-3-1 & ANSI/TIA-568-C standards
Sequential reverse metre markings (305-0)


Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Rip Cord One Rip Cord Jacket Materials LSOH   Diameter Nominal 5.0 mm Colour Orange RAL 2004 Purple RAL 4005 Construction U/UTP   No. of Pairs 4 Category 5e Number of Cores 8 Length 305 Metres Reaction to fire class EN 13501-6 Dca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat5e Patch Panels Cat5e Modules

Solid conductor 4 pair U/UTP Cat5e cable with External Grade LDPE outer sheath supplied on convenient 100m reels

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are jacketed in a heat and UV, moisture resistant black polyethylene outer sheath, making this cable ideal for external installation. The printing detail on the sheath, includes the cables part number and specification details.

Key Features: Supplied as 100 metre reels for the smaller job
UV and Moisture Resistant Polyethelene Outer Sheath
Cat5e 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Supports Gigabit Ethernet
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Jacket Materials LDPE, External Grade   Diameter Nominal 5.0 mm Colour Black RAL 9011 Construction U/UTP   No. of Pairs 4 Category 5e Number of Cores 8 Length 100 Metres Reaction to fire class EN 13501-6 Fca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat5e Patch Panels Cat5e Modules

Solid conductor 4 pair U/UTP Cat5e cable with a black polyethylene outer sheath, for outdoor use

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are jacketed in a heat and UV, moisture resistant black polyethylene outer sheath, making this cable ideal for external installation.

The printing detail on the sheath, includes the cables part number, specification details and a unique 305-0 metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box..

Key Features: 305 metres in an easy to pull box
UV and Moisture Resistant Polyethelene Outer Sheath
Cat5e 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Supports Gigabit Ethernet
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Sequential reverse metre markings (305-0)
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Jacket Materials LDPE, External Grade   Diameter Nominal 5.0 mm Colour Black RAL 9011 Construction U/UTP   No. of Pairs 4 Category 5e Number of Cores 8 Length 305 Metres Reaction to fire class EN 13501-6 Fca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat5e Patch Panels Cat5e Modules

Solid conductor 4 pair F/UTP Cat5e cable with PVC Grey outer sheath.

Each cable consists of 8 colour coded 24AWG polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are wrapped in an aluminium foil tape screen with a solid drain wire and jacketed in a heat resistant PVC rated material. The printing detail on the sheath, includes the cables part number, specification details and sequential metre marking.

Key Features: 305 metres in an easy to pull box
Cat5e 4 pair F/UTP solid cable with 8 colour coded polyethylene insulated conductors
Pairs are wrapped in an aluminium foil tape screen
Drain Wire
Rip cord for ease of stripping outer sheath
CPR Compliant to Eca Standard
Supports Gigabit Ethernet
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Sequential reverse metre markings (305-0)
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line)     Jacket Materials Flame Retardent PVC   Diameter Nominal 5.0 mm Colour Grey RAL 7035 Construction F/UTP   No. of Pairs 4 Category 5e Number of Cores 8 Length 305 Metres Reaction to fire class EN 13501-6 Eca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat5e Shielded Patch Panel Cat5e FTP Modules

Solid conductor 4 pair U/UTP Cat6 cable with LS0H Grey outer sheath. Supplied as convenient 100m reels

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in an LS0H material. Tested to 100 MHz, the guaranteed performance of this cable meets the ANSI/TIA 568C.2 and ISO/IEC 11801 requirements for PS-NEXT, attenuation, return loss, attenuation-to-crosstalk ratio (ACR)and impedance, making it ideal for high-end transmission links supporting today’s networking protocols..

Features: Supplied as 100 metre reels for the smaller job
Cat6 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Rip cord for ease of stripping outer sheath.
CPR Compliant to Dca Standard
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Benefits

Reliably supports today’s network protocols
Reduced installation costs and maintenance
Lower Bit Error Rates, increases network efficiency and uptime
Material & Construction Conductor Materials Soft & annealed copper   Size 23 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Rip Cord One Rip Cord Jacket Materials LS0H   Diameter Nominal 6.0mm Colour Grey RAL 7035 Construction U/UTP   No. of Pairs 4 Category 6 Number of Cores 8 Length 100 Metres Reaction to fire class EN 13501-6 Dca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat6 Patch Panels Cat6 Modules

Cat6 Cable - Solid conductor 4 pair UTP cable with low smoke zero halogen outer sheath.

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in either Purple, Orange Grey or Blue low smoke zero halogen material, which complies with the requirements of IEC332-1. The printing detail on the sheath, includes the cables part number, specification details and a 305-0 reverse metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box.

Features:

305 metres in an easy to pull box
Available in a Orange, Purple, Grey or Blue LSOH Sheath
Cat6 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Rip cord for ease of stripping outer sheath.
CPR Compliant to Dca Standard
Manufactured and tested to the ISO 11801, EN 50288-3-1 & ANSI/TIA-568-C standards
Sequential reverse metre markings (305-0)


Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Rip Cord One Rip Cord Jacket Materials LSOH   Diameter Nominal 5.9 mm Colour Orange RAL 2004 Purple RAL 4005 Blue RAL 5015 Grey RAL 7035 Construction U/UTP   No. of Pairs 4 Category 6 Number of Cores 8 Length 305 Metres Reaction to fire class EN 13501-6 Dca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat6 Patch Panels Cat6 Modules

Solid conductor 4 pair U/UTP Cat6 cable with External Grade LDPE outer sheath supplied on convenient 100m reels

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are jacketed in a heat and UV, moisture resistant black polyethylene outer sheath, making this cable ideal for external installation. The printing detail on the sheath, includes the cables part number and specification details.

Features: Supplied as 100 metre reels for the smaller job
UV and Moisture Resistant Polyethelene Outer Sheath
Cat6 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Jacket Materials LDPE, External Grade   Diameter Nominal 5.8 mm Colour Black RAL 9011 Construction U/UTP   No. of Pairs 4 Category 6 Number of Cores 8 Length 100 Metres Reaction to fire class EN 13501-6 Fca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat6 Patch Panels Cat6 Modules

Solid conductor 4 pair U/UTP Cat6 cable with a black polyethylene outer sheath, for outdoor use

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are jacketed in a heat and UV, moisture resistant black polyethylene outer sheath, making this cable ideal for external installation. The printing detail on the sheath, includes the cables part number, specification details and a unique 305-0 metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box..

Features: 305 metres in an easy to pull box
UV and Moisture Resistant Polyethelene Outer Sheath
Cat6 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Sequential reverse metre markings (305-0)
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Jacket Materials LDPE, External Grade   Diameter Nominal 5.8 mm Colour Black RAL 9011 Construction U/UTP   No. of Pairs 4 Category 6 Number of Cores 8 Length 305 Metres Reaction to fire class EN 13501-6 Fca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat6 Patch Panels Cat6 Modules

Solid conductor 4 pair F/UTP Cat5e cable with a black polyethylene outer sheath, for outdoor use.

Each cable consists of 8 colour coded polyethylene insulated conductors. These pairs are wrapped in an aluminium foil tape screen with a solid drain wire, jacketed in a heat and UV, moisture resistant black polyethylene outer sheath, making this cable ideal for outdoor installation.

The printing detail on the sheath, includes the cables part number, specification details and a unique 305-0 metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box.

Key Features: 305 metres in an easy to pull box
UV and Moisture Resistant Polyethelene Outer Sheath
Cat5e 4 pair F/UTP solid cable with 8 colour coded polyethylene insulated conductors
Drain Wire
Rip cord for ease of stripping outer sheath
Supports Gigabit Ethernet
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Sequential reverse metre markings (305-0)
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line)     Jacket Materials LDPE, External Grade   Diameter Nominal 5.0 mm Colour Black RAL 9011 Construction U/UTP   No. of Pairs 4 Category 5e Number of Cores 8

Accessories
(sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool

Networking

Cat5e Patch Panels Cat5e Modules
