Solid conductor 4 pair F/UTP Cat5e cable with a black polyethylene outer sheath, for outdoor use.

Each cable consists of 8 colour coded polyethylene insulated conductors. These pairs are wrapped in an aluminium foil tape screen with a solid drain wire, jacketed in a heat and UV, moisture resistant black polyethylene outer sheath, making this cable ideal for outdoor installation.

The printing detail on the sheath, includes the cables part number, specification details and a unique 305-0 metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box.

Key Features: 305 metres in an easy to pull box
UV and Moisture Resistant Polyethelene Outer Sheath
Cat5e 4 pair F/UTP solid cable with 8 colour coded polyethylene insulated conductors
Drain Wire
Rip cord for ease of stripping outer sheath
Supports Gigabit Ethernet
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Sequential reverse metre markings (305-0)
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line)     Jacket Materials LDPE, External Grade   Diameter Nominal 5.0 mm Colour Black RAL 9011 Construction U/UTP   No. of Pairs 4 Category 5e Number of Cores 8

Accessories
(sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool

Networking

Cat5e Patch Panels Cat5e Modules

Solid conductor 4 pair F/UTP Cat5e cable with PVC Grey outer sheath.

Each cable consists of 8 colour coded 24AWG polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are wrapped in an aluminium foil tape screen with a solid drain wire and jacketed in a heat resistant PVC rated material. The printing detail on the sheath, includes the cables part number, specification details and sequential metre marking.

Key Features: 305 metres in an easy to pull box
Cat5e 4 pair F/UTP solid cable with 8 colour coded polyethylene insulated conductors
Pairs are wrapped in an aluminium foil tape screen
Drain Wire
Rip cord for ease of stripping outer sheath
CPR Compliant to Eca Standard
Supports Gigabit Ethernet
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Sequential reverse metre markings (305-0)
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line)     Jacket Materials Flame Retardent PVC   Diameter Nominal 5.0 mm Colour Grey RAL 7035 Construction F/UTP   No. of Pairs 4 Category 5e Number of Cores 8 Length 305 Metres Reaction to fire class EN 13501-6 Eca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat5e Shielded Patch Panel Cat5e FTP Modules

Cat6A Cable - Solid conductor 4 pair U/FTP cable with low smoke zero halogen outer sheath, CRP Rating Class B2ca

Each cable consists of 4 pairs individually wrapped in a covering of high quality, strong, aluminium/polyester foil tape providing an individual screen for each pair. These are twisted together to form 4 pairs with varying lay lengths.

The printing detail on the sheath, includes the cables part number, specification details and a 305-0 reverse metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box.


Product Features



305 metres in an easy to pull box


Available in Ice Blue


CPR Compliant to B2ca Standard – Classification B2ca, s1, d1, a1


Manufactured and tested to the ANSI/TIA, ISO/IEC, and EN Standards


Fire Test according to IEC 60332-1-2 and EN 50399, EN 61034-2, EN 60754-2


Sequential reverse metre markings (305-0)


Solid Copper Cores

Product Specification



Construction and Characteristics

Conductor

Material/Size

Bare Copper / 23AWG

Insulation

Material

PE

Thickness

Nominal: 0.385mm

Diameter

Nominal: 1.32mm

Colours

Blue/White

Orange/White

Green/White

Brown/White

Unaged Elongation

Min. 100%

Unaged Tensile Strength

Min.0.816 Kgf/mm²

Screen

Material

Individual Foil and without overall braid screened.

Material

Stranded tinned copper drain wire

Jacket

Material

LS0H

Thickness

Nominal: 0.5mm

Diameter

Nominal: 7.1mm

Colour

Ice Blue

Unaged Elongation

Min. 125%

Unaged Tensile Strength

Min. 0.918Kgf/mm²

Aging at 100°C for 168hrs

Min. elongation retention: 70%

Min. tensile strength retention: 70%

Electrical Performances

Dielectric Strength of Insulation

1500 V dc/2 Seconds

Insulation Resistance Test

Min. 5000 M?/Km

Conductor Resistance

Max. 9.38 ?/100m at 20°C

Resistance Unbalance

Max. 2%

Capacitance Unbalance

Max. 160 pF/100m

Mutual Capacitance

Max. 5600 pF/100m

Impedance

1~100MHz

100? ± 15%

100~250MHz

100? ± 22%

251~500MHz

100? ± 25%

Attenuation & Near End Cross Talk

Frequency
(MHz)

Attenuation
(dB), Max.

NEXT
(dB), Min.

PSNEXT
(dB), Min.

1MHz

1.9*

65.0*

62.0*

10MHz

5.5*

57.8*

55.5*

100MHz

18.0*

41.8*

39.9*

200MHz

26.1*

36.9*

34.3*

250MHz

29.5*

35.3*

32.7*

300MHz

32.7*

34.0*

31.4*

400MHz

38.4*

29.9*

27.1*

500MHz

43.8*

26.7*

23.8*

This range of booted Cat5e RJ45 Ethernet Cables/Patch Leads are manufactured and tested to conform to the ISO11801 Cat5 1999 and EIA/TIA 568 Addendum 11 draft standards for enhanced performance. Each Cat5e RJ45 Ethernet Cable consists of 4 colour coded pairs. The PVC outer sheath and the stranded cores results in a high flexible and resilient cable.

All Proposed Category 5e Requirements as per ANSI/TIA/EIA, ISO/IEC and CENELEC Standards

1. ANSI/TIA-568-C.2
2. ISO/IEC 11801 Channel Class D
3. CENELEC EN 50173-1
4. CENELEC EN 50288
RoHS Compliant for European Union Issued Directive 2002/95/EC

Features:
Guaranteed performance to 125MHz
Superior cable flexibility from stranded cores
Boot maintains correct bend radius to ensure maximum performance
Connector: 8P8C, RJ45, 50 inch gold plating
ANSI/TIA 568 C.2 T568B pinout termination
Flame Retardancy is verified according to IEC 60332-1-2
RoHS compliant

The moulded boot offers strain relief to the cable helping prevent the cable being pulled free from the RJ45 plug, and its flush design means it can easily be used in high density installations. Available in a wide choice of colours and lengths up to 30mt, Comms Express are the business to business specialists, delivering great savings on top manufactured booted RJ45 patch leads.

Applications:
1000BASE-TX / 1000BASE-T Gigabit Ethernet
100BASE-TX Fast Ethernet
10BASE-TX Ethernet
Booted RJ45 ethernet cables/patch leads are essential to effective business operations. Together with patch panels and switches they play an integral role in network communications, providing connection for Ethernet, ISDN, and VoIP phones systems. Quality and reliable booted RJ45 cat5e patch leads are the glue which holds networks together.

Our range of Cat6 RJ45 Ethernet Cable/Patch Leads are manufactured and tested to conform with all the necessary standards for Cat6 communications.

All Proposed Category 6 requirements as per ANSI/TIA, ISO/IEC and CENELEC EN Standards

1. ANSI/TIA-568-C.2
2. EN 50173 Channel Class E
3. IEC 61935-2 for Patch Cord
4. ISO/IEC 61156-6end Edition for Stranded Cable
RoHS Compliant for European Union Issued Directive 2002/95/EC

Features:

Guaranteed performance to 250MHz
The particular saw-tooth design of jacket towards inner can enhance the resistance of alien crosstalk
The unique design of PE cross reduces the NEXT and RL ,and provides better transmission.
Superior cable flexibility from stranded cores
Boot maintains correct bend radius to ensure maximum performance
Connector 8P8C, RJ45, 50 inch gold plating
ANSI/TIA 568 C.2 T568B pinout termination
Flame Retardancy is verified according to IEC 60332-1-2.
RoHS compliant
Each lead is made with high quality Cat6 plugs, highly flexible PVC sheath and stranded copper conductors. Between the cable and plug is a boot to provide strain relief and protection to the cable.  The low profile design of the boot means it's ideal for use in high density installations.

Applications:


10GBASE-T Ethernet
1000BASE-TX/ 1000BASE-T Gigabit Ethernet
100BASE-TX Fast Ethernet
10BASE-TX Ethernet
This range is available in a wide variety of colours and lengths up to 20mt (30mt in White).

Available in 6 lengths from 0.6 m to 4.9 m

Features:

Black PVC sheath
Part number and length printed on the boot
Compatible with colour coded PatchClips for the first level of identification
A reliable patch cord for all networks:

Conforms to EIA/TIA 568-B2.2-1 category 5e
100% testing of electrical and optical properties
Each patch cord identified by a unique serial number
How it works

PatchSee Connector Insert technology Available in lengths 0.6 metre up to 30 metre
Slim line boot to align with the edges of the RJ45 plug for high density panels
10 Gbit/s ready for the future category 6a standards
Stainless steel fitted spring for bending radius protection
  Features
Black boot
Part number and length printed on the boot
Compatible with colour coded PatchClips for the first level of identification
A reliable cable for all networks : Conforms to EIA/TIA 568-B2.2-1 category 6
10 Gbit/s ready, future standard category 6a
25 year guarantee for use in category 6 channels interoperable with any cabling system
100% testing of electrical and optical properties
Test results saved onto a in database
Each patch cord identified by a unique serial number
Plastic cross web unshielded (UTP)
PVC sheath for UTP cables
How it works

Available in 6 lengths from 0.6 m to 4.9 m

Features

Black sheath
Grey boot to distinguish it from black booted category 5e patch cords
Part number and length printed on the boot
Compatible with colour coded PatchClips for the first level of identification
A reliable patch cord for all networks:

Conforms to EIA/TIA 568-B2.2-1 category 6
25 year guarantee for use in category 6 channels interoperable with any cabling system= quality control :  100% testing of electrical and optical properties
Test results saved onto a database
Each patch cord identified by a unique serial number
Plastic cross web unshielded (UTP) and individually foil shielded pairs (FTP)
PVC sheath for UTP cables and zero halogen (LSOH) sheath for FTP cables


How it works

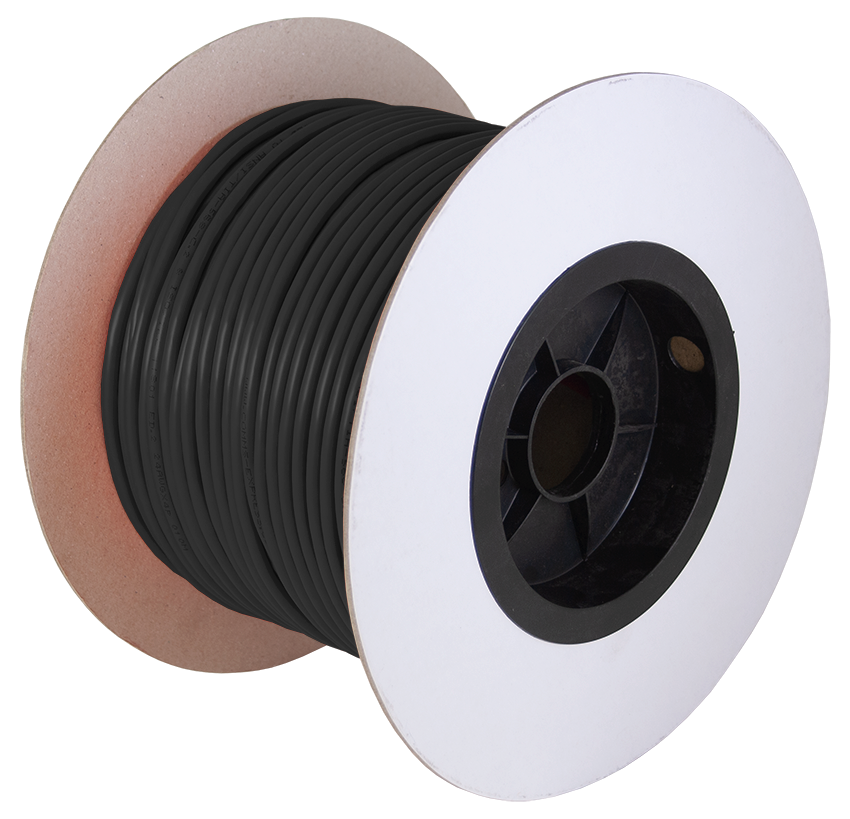

CE's Cat5e UTP Patch Cable is a stranded Cat5e cable for manufacturing patch cables. This cable is Cat5e compliant, It has a standard conductor for patch leads and comes in various colours.

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs and jacketed in a heat resistant PVC material. ETL/3P certified and tested to meet  ANSI/TIA 568C.2 Category 5e safety/performance requirements.

Features: Available in 100mtr reels
Stranded Cat5e cable for manufacturing patch cables
Cat5e 4 pair UTP PVC patch cable with 8 colour coded polyethylene insulated conductors.
Available in ten colours
Supports Gigabit Ethernet
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Material & Construction Conductor Materials Bare Copper Size 24 AWG Insulation Materials HDPE Colour Blue/White Orange/White Green/White Brown/White Jacket Materials Flame Retardent PVC Diameter Nominal 5.2 mm Colour Various Construction U/UTP No. of Pairs 4 Category 5e Number of Cores 8



Configuration Orange 2 Green 3 White/Orange White/Green Blue 1 Brown 4 White/Blue White/Brown

Accessories
(sold Separately)

Tools

Universal Stripping Tool Crimp Tool

Solid conductor 4 pair Cat5e U/UTP cable with PVC Grey outer sheath.

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in a heat resistant PVC material.

The printing detail on the sheath, includes the cables part number, specification details and a 305-0 reverse metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box.

Key Features: 305 metres in an easy to pull box
Cat5e 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Rip cord for ease of stripping outer sheath.
Supports Gigabit Ethernet
CPR Compliant to Eca Standard
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Sequential reverse metre markings (305-0)
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Rip Cord One Rip Cord Jacket Materials Flame Retardent PVC   Diameter Nominal 5.0 mm Colour Grey RAL 7035 Construction U/UTP   No. of Pairs 4 Category 5e Number of Cores 8 Length 305 Metres Reaction to fire class EN 13501-6 Eca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat5e Patch Panels Cat5e Modules

Solid conductor 4 pair U/UTP Cat5e cable with PVC Grey outer sheath Supplied on convenient 100m reels.

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in a heat resistant PVC material.

Tested to 100 MHz, the guaranteed performance of this cable meets the ANSI/TIA 568C.2 and ISO/IEC 11801 requirements for PS-NEXT, attenuation, return loss, attenuation-to-crosstalk ratio (ACR)and impedance, making it ideal for high-end transmission links supporting today’s networking protocols.

Key Features: Supplied as 100 metre reels for the smaller job
Cat5e 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors
Rip cord for ease of stripping outer sheath
CPR Compliant to Eca Standard
Supports Gigabit Ethernet
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Rip Cord One Rip Cord Jacket Materials Flame Retardent PVC   Diameter Nominal 5.0 mm Colour Grey RAL 7035 Construction U/UTP   No. of Pairs 4 Category 5e Number of Cores 8 Length 100 Metres Reaction to fire class EN 13501-6 Eca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat5e Patch Panels Cat5e Modules

Cat6 Cable - Solid conductor 4 pair UTP cable with low smoke zero halogen outer sheath.

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in either Purple, Orange Grey or Blue low smoke zero halogen material, which complies with the requirements of IEC332-1. The printing detail on the sheath, includes the cables part number, specification details and a 305-0 reverse metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box.

Features:

305 metres in an easy to pull box
Available in a Orange, Purple, Grey or Blue LSOH Sheath
Cat6 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Rip cord for ease of stripping outer sheath.
CPR Compliant to Dca Standard
Manufactured and tested to the ISO 11801, EN 50288-3-1 & ANSI/TIA-568-C standards
Sequential reverse metre markings (305-0)


Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Rip Cord One Rip Cord Jacket Materials LSOH   Diameter Nominal 5.9 mm Colour Orange RAL 2004 Purple RAL 4005 Blue RAL 5015 Grey RAL 7035 Construction U/UTP   No. of Pairs 4 Category 6 Number of Cores 8 Length 305 Metres Reaction to fire class EN 13501-6 Dca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat6 Patch Panels Cat6 Modules

Cat6 Cable – Solid conductor 4 pair UTP cable with low smoke zero halogen outer sheath, CRP Rating Class B2ca

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed Purple low smoke zero halogen material, which complies with the requirements of IEC11801-1.

The printing detail on the sheath, includes the cables part number, specification details and a 305-0 reverse metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box.


Product Features



305 metres in an easy to pull box


Available in Purple


CRP Compliant to B2ca Standard – Classification B2ca, s1a, d0, a1


Manufactured and tested to the ANSI/TIA, ISO/IEC, and EN Standards, ANSI/TIA-568.2-D, ISO/IEC 11801-1 Edition 1.0


Fire Test is according to IEC 60332-1-2 and EN 50399, EN 61034-2, EN 60754-2


Sequential reverse metre markings (305-0)


Solid Copper Cores


Outer Sheath: LS0H

Product Specification



Construction and Characteristics

Conductor

Material/Size

Bare Copper / 24AWG

Construction

1/0.53±0.008

Insulation

Material

HDPE

Diameter

0.95±0.08

Colours

Blue/White, Orange/White, Green/White, Brown/White

Cross-Section

Material

PE

Jacket

Material

LS0H

Diameter

6.3±0.3

Parameters

Operating Temperature

-20~+60°C

Conductor DC Resistance (at 20°C)

≤ 9.5 Ω/100m

Flame Retardant

B2ca

Propagation Delay Skew

Max. 45ns/100m

Technical Performance at 20°C (100m)

Frequency
(MHz)

Return Loss
(≥dB)

Insertion Loss
(≤dB)

NEXT
(≥dB)

DELAY
(≤ns)

PSNEXT
(≥dB)

ACRF
(≥dB)

PSACRF
(≥dB)

4MHz

23.0

4.0

66.3

552

63.3

56.0

53.0

8MHz

24.5

5.6

61.8

547

58.8

49.9

46.9

10MHz

25.0

6.4

60.3

545

57.3

48.0

45.0

16MHz

25.0

8.1

57.2

543

54.2

43.9

40.9

20MHz

25.0

9.0

55.8

542

52.8

42.0

39.0

25MHz

24.3

10.1

54.3

541

51.3

40.0

37.0

31.25MHz

23.6

11.3

52.9

540

49.9

38.1

35.1

62.5MHz

21.5

16.3

48.4

539

45.4

32.1

29.1

100MHz

20.1

21.0

45.3

538

42.3

28.0

25.0

200MHz

18.0

30.7

40.8

537

37.8

22.0

19.0

250MHz

17.3

34.8

39.3

536

36.3

20.0

17.0

Cat6 Cable - Solid conductor 4 pair UTP cable with low smoke zero halogen outer sheath, CRP Rating Class Cca

Each cable consists of 4 pairs individually wrapped with varying lay lengths.

The printing detail on the sheath, includes the cables part number, specification details and a 305-0 reverse metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box.


Product Features



305 metres in an easy to pull box


Available in Purple


CRP Compliant to Cca Standard – Classification Cca, s1a, d0, a1


Manufactured and tested to ANSI/TIA, ISO/IEC & EN Standards, ANSI/TIA-568.2-D Cat.6, ISO/IEC 11801-1 Edition 1.0 Class E


Fire Test is according to IEC 60332-1-2 and EN 50399, EN 61034-2, EN 60754-2


Sequential reverse metre markings (305-0)


Solid Copper Cores


Outer Sheath: LS0H

Product Specification



Construction and Characteristics

Conductor

Material/Size

Bare Copper / 24AWG

Insulation

Material

PE

Thickness

Nominal: 0.219mm

Diameter

Nominal: 0.967mm

Colours

Blue/White-Blue

Orange/White-Orange

Green/White-Green

Brown/White-Brown

Unaged Elongation

Min. 300%

Unaged Tensile Strength

Min. 1.836 Kgf/mm²

Jacket

Material

LS0H

Thickness

Nominal: 0.55mm

Diameter

Nominal: 6.0mm

Colour

Purple

Unaged Elongation

Min. 125%

Unaged Tensile Strength

Min. 0.918Kgf/mm²

Aging at 100°C for 168hrs

Min. elongation retention: 70%

Min. tensile strength retention: 70%

Electrical Performances

Dielectric Strength of Insulation

2500 V dc or 1500 V ac / 2 Seconds

Insulation Resistance Test

Min. 5000 M?/Km

Conductor Resistance

Max. 9.38 ?/100m at 20°C

Resistance Unbalance

Max. 2%

Capacitance Unbalance

Max. 160 pF/100m

Mutual Capacitance

Max. 5600 pF/100m

Impedance

1~100MHz

100? ± 15%

100~250MHz

100? ± 22%

Attenuation & Near End Cross Talk

Frequency
(MHz)

Attenuation
(dB/100m)

NEXT
(dB), Min.

PSNEXT
(dB), Min.

1MHz

1.9*

65.0*

62.0*

4MHz

3.5*

64.1*

61.8*

10MHz

5.5*

57.8*

55.5*

16MHz

7.6*

56.2*

54.2*

20MHz

7.9*

53.1*

50.7*

31.25MHz

10.0*

50.0*

47.5*

62.5MHz

14.4*

45.1*

42.7*

100MHz

18.6*

41.8*

39.3*

200MHz

27.4*

36.9*

34.3*

250MHz

31.1*

35.3*

32.7*

Solid conductor 4 pair U/UTP Cat6 cable with a black polyethylene outer sheath, for outdoor use

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are jacketed in a heat and UV, moisture resistant black polyethylene outer sheath, making this cable ideal for external installation. The printing detail on the sheath, includes the cables part number, specification details and a unique 305-0 metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box..

Features: 305 metres in an easy to pull box
UV and Moisture Resistant Polyethelene Outer Sheath
Cat6 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Sequential reverse metre markings (305-0)
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Jacket Materials LDPE, External Grade   Diameter Nominal 5.8 mm Colour Black RAL 9011 Construction U/UTP   No. of Pairs 4 Category 6 Number of Cores 8 Length 305 Metres Reaction to fire class EN 13501-6 Fca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat6 Patch Panels Cat6 Modules

Solid conductor 4 pair U/UTP Cat6 cable with External Grade LDPE outer sheath supplied on convenient 100m reels

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are jacketed in a heat and UV, moisture resistant black polyethylene outer sheath, making this cable ideal for external installation. The printing detail on the sheath, includes the cables part number and specification details.

Features: Supplied as 100 metre reels for the smaller job
UV and Moisture Resistant Polyethelene Outer Sheath
Cat6 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Jacket Materials LDPE, External Grade   Diameter Nominal 5.8 mm Colour Black RAL 9011 Construction U/UTP   No. of Pairs 4 Category 6 Number of Cores 8 Length 100 Metres Reaction to fire class EN 13501-6 Fca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat6 Patch Panels Cat6 Modules

Solid conductor 4 pair U/UTP Cat6 cable with LS0H Grey outer sheath. Supplied as convenient 100m reels

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in an LS0H material. Tested to 100 MHz, the guaranteed performance of this cable meets the ANSI/TIA 568C.2 and ISO/IEC 11801 requirements for PS-NEXT, attenuation, return loss, attenuation-to-crosstalk ratio (ACR)and impedance, making it ideal for high-end transmission links supporting today’s networking protocols..

Features: Supplied as 100 metre reels for the smaller job
Cat6 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Rip cord for ease of stripping outer sheath.
CPR Compliant to Dca Standard
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Benefits

Reliably supports today’s network protocols
Reduced installation costs and maintenance
Lower Bit Error Rates, increases network efficiency and uptime
Material & Construction Conductor Materials Soft & annealed copper   Size 23 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Rip Cord One Rip Cord Jacket Materials LS0H   Diameter Nominal 6.0mm Colour Grey RAL 7035 Construction U/UTP   No. of Pairs 4 Category 6 Number of Cores 8 Length 100 Metres Reaction to fire class EN 13501-6 Dca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat6 Patch Panels Cat6 Modules

Solid conductor 4 pair U/UTP Cat5e cable with a black polyethylene outer sheath, for outdoor use

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are jacketed in a heat and UV, moisture resistant black polyethylene outer sheath, making this cable ideal for external installation.

The printing detail on the sheath, includes the cables part number, specification details and a unique 305-0 metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box..

Key Features: 305 metres in an easy to pull box
UV and Moisture Resistant Polyethelene Outer Sheath
Cat5e 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Supports Gigabit Ethernet
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Sequential reverse metre markings (305-0)
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Jacket Materials LDPE, External Grade   Diameter Nominal 5.0 mm Colour Black RAL 9011 Construction U/UTP   No. of Pairs 4 Category 5e Number of Cores 8 Length 305 Metres Reaction to fire class EN 13501-6 Fca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat5e Patch Panels Cat5e Modules

Solid conductor 4 pair U/UTP Cat5e cable with External Grade LDPE outer sheath supplied on convenient 100m reels

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs are jacketed in a heat and UV, moisture resistant black polyethylene outer sheath, making this cable ideal for external installation. The printing detail on the sheath, includes the cables part number and specification details.

Key Features: Supplied as 100 metre reels for the smaller job
UV and Moisture Resistant Polyethelene Outer Sheath
Cat5e 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Supports Gigabit Ethernet
Manufactured and tested to the ISO 11801, EN 50173 & ANSI/TIA-568-C standards
Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Jacket Materials LDPE, External Grade   Diameter Nominal 5.0 mm Colour Black RAL 9011 Construction U/UTP   No. of Pairs 4 Category 5e Number of Cores 8 Length 100 Metres Reaction to fire class EN 13501-6 Fca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat5e Patch Panels Cat5e Modules

Cat5e Cable  - Solid conductor 4 pair U/UTP cable with low smoke zero halogen outer sheath.

Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in either Purple or Orange low smoke zero halogen material, which complies with the requirements of IEC332-1.

The printing detail on the sheath, includes the cables part number, specification details and a 305-0 reverse metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box.

Key Features:

305 metres in an easy to pull box
Available in a Orange or Purple LSOH Sheath
Cat5e 4 pair UTP solid cable with 8 colour coded polyethylene insulated conductors.
Rip cord for ease of stripping outer sheath.
CPR Compliant to Dca Standard
Supports Gigabit Ethernet
Manufactured and tested to ISO 11801, EN 50288-3-1 & ANSI/TIA-568-C standards
Sequential reverse metre markings (305-0)


Material & Construction Conductor Materials Soft & annealed copper   Size 24 AWG Insulation Materials HDPE Colour Blue/White (Blue stripe-2line) Orange/White (Orange stripe-2line) Green/White (Green stripe-2line) Brown/White (Brown stripe-2line) Rip Cord One Rip Cord Jacket Materials LSOH   Diameter Nominal 5.0 mm Colour Orange RAL 2004 Purple RAL 4005 Construction U/UTP   No. of Pairs 4 Category 5e Number of Cores 8 Length 305 Metres Reaction to fire class EN 13501-6 Dca

Accessories
(Sold Separately)

Tools

Universal Stripping Tool IDC Punchdown Tool Networking

Cat5e Patch Panels Cat5e Modules
