These wall mount data/comms cabinets are ideal for small network installations. The Data Racks have 19" mounting profiles at the front and rear of the cabinet, allowing easy installtion of standard rackmount equipment.
Cable access is provided top and bottom, and the front door and side panels are lockable so that unwanted hands can't tamper with the equipment inside the Data Cabinet.
Features:
Lockable/removable side panels
Easy-mount wall adapter plate (for ease of installation)
19" mounting profiles front and rear
Lockable Glass Front Door
Available in Grey (RAL7044) or Black (RAL9004)
Weight (KGS) 12.2
Static Loading (KGS) 60
Accessories are available on the following pages:
PDU's
Shelves
Cable Management
Please Note: Castors are not compatible with wall mounted cabinets.
Highlights
The 12u 390mm wall mounted cabinets are available in Grey (RAL 7044) or Black (RAL 9004)
Quick Release Side removable and lockable panels on both sides
Adjustable 19 inch front and rear mounting profiles with "u" markings
Top and bottom cable entry for easy patching
Alternative Product
12u 500mm Deep Wall mounted Data Cabinet
Need 110mm more depth? Go for the 500mm version instead.
9u 390mm
9u 500mm
12u 390mm
12u 500mm
15u 390mm
15u 500mm
External Height
503mm
637mm
770mm
External Width
600mm
External Depth
390mm
500mm
390mm
500mm
390mm
500mm
Internal Working Depth (max)
340mm
450mm
340mm
450mm
340mm
450mm
Weight
15.2Kgs
17.4Kgs
18.6Kgs
20.8Kgs
21Kgs
24.3Kgs
Static Loading (includes weight of cabinet)
60Kg
Mounting Profiles
Front and Rear
Colour: |
Our range of 500mm deep wall mounted cabinets have been redesigned and refreshed to offer users’ even better value for money, through better access, quicker and easier installation and improved aesthetic.
These wall mount data/comms cabinets are ideal for small network installations. The Data Racks have 19" mounting profiles at the front and rear of the cabinet, allowing easy installation of standard rackmount equipment.
Cable access is provided top and bottom, and the front door and side panels are lockable so that unwanted hands can't tamper with the equipment inside the Data Cabinet.
Features:
Available in both Grey (RAL7044) and Black (RAL9004)
Quick release front door - Fixed and released using a simple spring loaded pin
Lockable, removeable side panels - Fixed and released using simple slam latch handles
Two sets of adjustable 19” profiles - Allows easy installation of a variety of product, shelves and power distribution
Weight (KGS) 14.4
Static Loading (KGS) 60
Accessories are available on the following pages:
PDU's
Shelves
Cable Management
Please Note: Castors are not compatible with wall mounted cabinets.
Highlights
The 12u 500mm wall mounted cabinets are available in Grey (RAL 7044) or Black (RAL 9004)
Quick Release Side removable and lockable panels on both sides
Adjustable 19 inch front and rear mounting profiles with "u" markings
Top and bottom cable entry for easy patching
Alternative Product
12u 390mm Deep Wall mounted Data Cabinet
Too Deep? Go for the 390mm version instead.
9u 390mm
9u 500mm
12u 390mm
12u 500mm
15u 390mm
15u 500mm
External Height
503mm
637mm
770mm
External Width
600mm
External Depth
390mm
500mm
390mm
500mm
390mm
500mm
Internal Working Depth (max)
340mm
450mm
340mm
450mm
340mm
450mm
Weight
15.2Kgs
17.4Kgs
18.6Kgs
20.8Kgs
21Kgs
24.3Kgs
Static Loading (includes weight of cabinet)
60Kg
Mounting Profiles
Front and Rear
Colour: |
These 600mm Deep Wall Mounted Server Racks are ideal for small network installations where both Servers and Patching are require. The additional depth offers increased versatility and the 600mm width gives ample space for cable management.
Cable access is provided top and bottom, and the front door and side panels are lockable so that unwanted hands can't tamper with the equipment inside the Data Cabinet.
Features:
Lockable Glass Front Door in Steel Surround
Removable and Lockable Steel Side Panels
Adjustable 19" Profiles Front & Rear
Cable access holes, with gland plates top and bottom
Earth Bonding Kit
Weight (KGS) 17
Static Loading (KGS) 60
Accessories are available on the following pages:
PDU's
Shelves
Cable Management
Please Note: Casters are not compatible with wall mounted cabinets.
Highlights
The 12u 600mm wall mounted cabinets are available in Grey (RAL 7044) or Black (RAL 9004)
Quick Release Side removable and lockable panels on both sides
Adjustable 19 inch front and rear mounting profiles with "u" markings
Top and bottom cable entry for easy patching
Alternative Product
12u 500mm Deep Wall mounted Data Cabinet
Too Deep? Go for the 500mm version instead.
Colour: |
These 2 section 600mm deep wall mount data cabinets are designed with versatility in mind. When mounted on the wall, the cabinet can swing open, providing access to the rear of the cabinet for easy installation and maintenance of equipment. Lockable and removable side panels also provide easy access to the cabinet.
Cable entry is provided top and bottom of the cabinet and also in the rear swing section.
Features:
Welded construction
Lockable glass front door in a steel surround (over 180 degree door opening with quick release pins)
19" Adjustable Mounting Profiles front and rear
Cable entry points top and rear with gland plates
Lockable/removable side panels
Weight (KGS) 26
Static Loading (KGS) 60
Our range of 500mm deep wall mounted cabinets have been redesigned and refreshed to offer users’ even better value for money, through better access, quicker and easier installation and improved aesthetic.
These wall mount data/comms cabinets are ideal for small network installations. The Data Racks have 19" mounting profiles at the front and rear of the cabinet, allowing easy installation of standard rackmount equipment.
Cable access is provided top and bottom, and the front door and side panels are lockable so that unwanted hands can't tamper with the equipment inside the Data Cabinet.
Features:
Available in both Grey (RAL7044) and Black (RAL9004)
Quick release front door - Fixed and released using a simple spring loaded pin
Lockable, removeable side panels - Fixed and released using simple slam latch handles
Two sets of adjustable 19” profiles - Allows easy installation of a variety of product, shelves and power distribution
Weight (KGS) 14.4
Static Loading (KGS) 60
Accessories are available on the following pages:
PDU's
Shelves
Cable Management
Please Note: Castors are not compatible with wall mounted cabinets.
Highlights
The 15u 500mm wall mounted cabinets are available in Grey (RAL 7044) or Black (RAL 9004)
Quick Release Side removable and lockable panels on both sides
Adjustable 19 inch front and rear mounting profiles with "u" markings
Top and bottom cable entry for easy patching
Alternative Product
15u 390mm Deep Wall mounted Data Cabinet
Too Deep? Go for the 390mm version instead.
9u 390mm
9u 500mm
12u 390mm
12u 500mm
15u 390mm
15u 500mm
External Height
503mm
637mm
770mm
External Width
600mm
External Depth
390mm
500mm
390mm
500mm
390mm
500mm
Internal Working Depth (max)
340mm
450mm
340mm
450mm
340mm
450mm
Weight
15.2Kgs
17.4Kgs
18.6Kgs
20.8Kgs
21Kgs
24.3Kgs
Static Loading (includes weight of cabinet)
60Kg
Mounting Profiles
Front and Rear
Colour: |
These 600mm Deep Wall Mounted Server Racks are ideal for small network installations where both Servers and Patching are require. The additional depth offers increased versatility and the 600mm width gives ample space for cable management.
These cabinets are suitable for holding shallow servers up to a depth of 550mm
Features:
Lockable Glass Front Door in Steel Surround
Removable and Lockable Steel Side Panels
Adjustable 19" Profiles Front & Rear
Cable access holes, with gland plates top and bottom
Earth Bonding Kit
Weight (KGS) 25.8
Static Loading (KGS) 60
Cabinets are finished in Grey.
Accessories are available on the following pages:
PDU's
Shelves
Fans, Blanking Panels and Nuts and Bolts
Please Note: Casters are not compatible with wall mounted cabinets.
These 2 section 600mm deep wall mount data cabinets are designed with versatility in mind. When mounted on the wall, the cabinet can swing open, providing access to the rear of the cabinet for easy installation and maintenance of equipment. Lockable and removable side panels also provide easy access to the cabinet.
Cable entry is provided top and bottom of the cabinet and also in the rear swing section.
Features:
Welded construction
Lockable glass front door in a steel surround (over 180 degree door opening with quick release pins)
19" Adjustable Mounting Profiles front and rear
Cable entry points top and rear with gland plates
Lockable/removable side panels
Weight (KGS) 26
Static Loading (KGS) 60
These shallow depth cabinets are ideal for small office installations they offer a small footprint to enable you to keep your networking tidy.
Manufactured in the UK
Supplied with a Perspex Front Door in a Steel Surround
Lockable front door
Side vent grills on both sides
Fixed 19" Profiles to the front
Supplied finished in Matt Black or Grey
Please note, these cabinets will only house switches of 180mm or less (approx 25mm of space at the rear is taken by a "right angled" IEC power connector on a rack-mounted swtich with internal power)
Fixed 19" Profiles to the front
Shallow Depth for Small Environments
Houses Rack Mounted Switches of 180mm or less to keep cabinet footprint at a minimum
Wall Mounted
Fixed Construction
Recommended Accessories
(Sold Separately)
Right Angled IEC-Mains Lead
Right angled IEC connector allows for a deeper switch as the connector is shallower than a conventional IEC lead. Available in 2mt and 5mt lengths.
Fixed Front Mounted Shelf
A 150mm deep shelf that mounts on the front 19 inch profiles. Ideal for desktop switches and other non mountable networking equipment
A variety of Desktop and Rackmountable Switches
Switches such as the TP-Link SF1024D and SG1024D are ideal, as they are shallow enough to fit in the cabinet. Desktop switches can just sit in the cabinet or on a shelf
Alternative Product
Patching Cabinet Kit
Want the ease of just selecting your needs? Go for the kit, with a variety of options at a discounted price
4u
6u
External Height
190mm
300mm
External Width
530mm
530mm
External Depth
270mm
270mm
Internal Working Depth
220mm
220mm
Mounting Profiles
Front
Front
Colour: |
Our range of 500mm deep wall mounted cabinets have been redesigned and refreshed to offer users’ even better value for money, through better access, quicker and easier installation and improved aesthetic.
These wall mount data/comms cabinets are ideal for small network installations. The Data Racks have 19" mounting profiles at the front and rear of the cabinet, allowing easy installation of standard rackmount equipment.
Cable access is provided top and bottom, and the front door and side panels are lockable so that unwanted hands can't tamper with the equipment inside the Data Cabinet.
Features:
Available in both Grey (RAL7044) and Black (RAL9004)
Quick release front door - Fixed and released using a simple spring loaded pin
Lockable, removeable side panels - Fixed and released using simple slam latch handles
Two sets of adjustable 19” profiles - Allows easy installation of a variety of product, shelves and power distribution
Weight (KGS) 14.4
Static Loading (KGS) 60
Accessories are available on the following pages:
PDU's
Shelves
Cable Management
Please Note: Castors are not compatible with wall mounted cabinets.
Highlights
The 6u 500mm wall mounted cabinets are available in Grey (RAL 7044) or Black (RAL 9004)
Quick Release Side removable and lockable panels on both sides
Adjustable 19 inch front and rear mounting profiles with "u" markings
Top and bottom cable entry for easy patching
Alternative Product
6u 390mm Deep Wall mounted Data Cabinet
Too Deep? Go for the 390mm version instead.
6u 390mm
6u 500mm
9u 390mm
9u 500mm
External Height
370mm
503mm
External Width
600mm
External Depth
390mm
500mm
390mm
500mm
Internal Working Depth (max)
340mm
450mm
340mm
450mm
Weight
12.2Kgs
14.4Kgs
15.2Kgs
17.4Kgs
Static Loading (includes weight of cabinet)
60Kg
Mounting Profiles
Front and Rear
Colour: |
These wall mount data/comms cabinets are ideal for small network installations. The Data Racks have 19" mounting profiles at the front and rear of the cabinet, allowing easy installation of standard rackmount equipment.
Cable access is provided top and bottom, and the front door and side panels are lockable so that unwanted hands can't tamper with the equipment inside the Data Cabinet.
Features:
Lockable/removable side panels
Easy-mount wall adapter plate (for ease of installation)
19" mounting profiles front and rear
Lockable Glass Front Door
Available in Grey (RAL7044) or Black (RAL9004)
Weight (KGS) 12.2
Static Loading (KGS) 60
Accessories are available on the following pages:
PDU's
Shelves
Cable Management
Please Note: Castors are not compatible with wall mounted cabinets.
Highlights

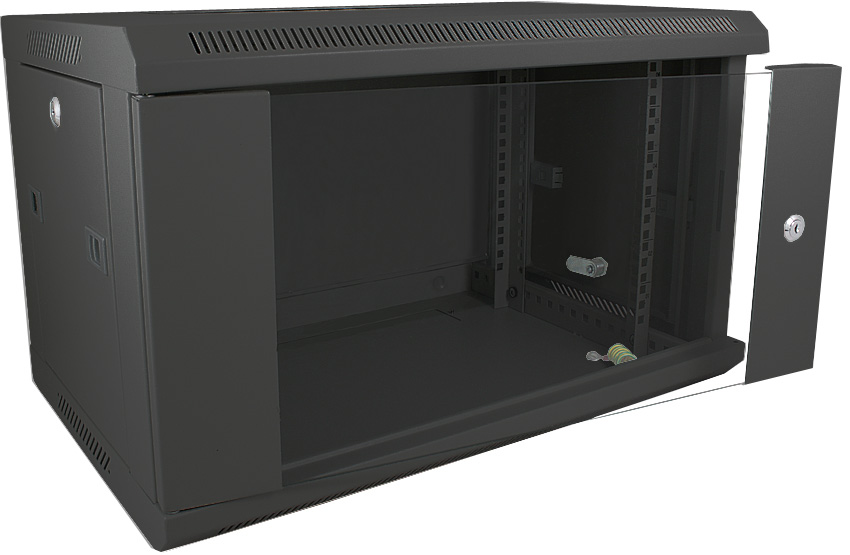

The 6u 390mm wall mounted cabinets are available in Grey (RAL 7044) or Black (RAL 9004)
Quick Release Side removable and lockable panels on both sides
Adjustable 19 inch front and rear mounting profiles with "u" markings
Top and bottom cable entry for easy patching
Alternative Product
6u 500mm Deep Wall mounted Data Cabinet
Need 110mm more depth? Go for the 500mm version instead.
6u 390mm
6u 500mm
9u 390mm
9u 500mm
External Height
370mm
503mm
External Width
600mm
External Depth
390mm
500mm
390mm
500mm
Internal Working Depth (max)
340mm
450mm
340mm
450mm
Weight
12.2Kgs
14.4Kgs
15.2Kgs
17.4Kgs
Static Loading (includes weight of cabinet)
60Kg
Mounting Profiles
Front and Rear
Colour: |
These 600mm Deep Wall Mounted Server Racks are ideal for small network installations where both Servers and Patching are require. The additional depth offers increased versatility and the 600mm width gives ample space for cable management.
Cable access is provided top and bottom, and the front door and side panels are lockable so that unwanted hands can't tamper with the equipment inside the Data Cabinet.
Features:
Lockable Glass Front Door in Steel Surround
Removable and Lockable Steel Side Panels
Adjustable 19" Profiles Front & Rear
Cable access holes, with gland plates top and bottom
Earth Bonding Kit
Weight (KGS) 17
Static Loading (KGS) 60
Accessories are available on the following pages:
PDU's
Shelves
Cable Management
Please Note: Casters are not compatible with wall mounted cabinets.
Highlights
The 6u 600mm wall mounted cabinets are available in Grey (RAL 7044) or Black (RAL 9004)
Quick Release Side removable and lockable panels on both sides
Adjustable 19 inch front and rear mounting profiles with "u" markings
Top and bottom cable entry for easy patching
Alternative Product
6u 500mm Deep Wall mounted Data Cabinet
Too Deep? Go for the 500mm version instead.
Colour: |
These 2 section 600mm deep wall mount data cabinets are designed with versatility in mind. When mounted on the wall, the cabinet can swing open, providing access to the rear of the cabinet for easy installation and maintenance of equipment. Lockable and removable side panels also provide easy access to the cabinet.
Cable entry is provided top and bottom of the cabinet and also in the rear swing section.
Features:
Welded construction
Lockable glass front door in a steel surround (over 180 degree door opening with quick release pins)
19" Adjustable Mounting Profiles front and rear
Cable entry points top and rear with gland plates
Lockable/removable side panels
Weight (KGS) 20
Static Loading (KGS) 60
These shallow depth cabinets are ideal for small office installations they offer a small footprint to enable you to keep your networking tidy.
Manufactured in the UK
Supplied with a Perspex Front Door in a Steel Surround
Lockable front door
Side vent grills on both sides
Fixed 19" Profiles to the front
Supplied finished in Matt Black or Grey
Please note, these cabinets will only house switches of 180mm or less (approx 25mm of space at the rear is taken by a "right angled" IEC power connector on a rack-mounted swtich with internal power)
Fixed 19" Profiles to the front
Shallow Depth for Small Environments
Houses Rack Mounted Switches of 180mm or less to keep cabinet footprint at a minimum
Wall Mounted
Fixed Construction
Recommended Accessories
(Sold Separately)
Right Angled IEC-Mains Lead
Right angled IEC connector allows for a deeper switch as the connector is shallower than a conventional IEC lead. Available in 2mt and 5mt lengths.
Fixed Front Mounted Shelf
A 150mm deep shelf that mounts on the front 19 inch profiles. Ideal for desktop switches and other non mountable networking equipment
A variety of Desktop and Rackmountable Switches
Switches such as the TP-Link SF1024D and SG1024D are ideal, as they are shallow enough to fit in the cabinet. Desktop switches can just sit in the cabinet or on a shelf
Alternative Product
Patching Cabinet Kit
Want the ease of just selecting your needs? Go for the kit, with a variety of options at a discounted price
4u
6u
External Height
190mm
300mm
External Width
530mm
530mm
External Depth
270mm
270mm
Internal Working Depth
220mm
220mm
Mounting Profiles
Front
Front
Colour: |
These wall mount data/comms cabinets are ideal for small network installations. The Data Racks have 19" mounting profiles at the front and rear of the cabinet, allowing easy installation of standard rackmount equipment.
Cable access is provided top and bottom, and the front door and side panels are lockable so that unwanted hands can't tamper with the equipment inside the Data Cabinet.
Features:
Lockable/removable side panels
Easy-mount wall adapter plate (for ease of installation)
19" mounting profiles front and rear
Lockable Glass Front Door
Available in Grey (RAL7044) or Black (RAL9004)
Weight (KGS) 12.2
Static Loading (KGS) 60
Accessories are available on the following pages:
PDU's
Shelves
Cable Management
Please Note: Castors are not compatible with wall mounted cabinets.
Highlights
The 9u 390mm wall mounted cabinets are available in Grey (RAL 7044) or Black (RAL 9004)
Quick Release Side removable and lockable panels on both sides
Adjustable 19 inch front and rear mounting profiles with "u" markings
Top and bottom cable entry for easy patching
Alternative Product
9u 500mm Deep Wall mounted Data Cabinet
Need 110mm more depth? Go for the 500mm version instead.
6u 390mm
6u 500mm
9u 390mm
9u 500mm
External Height
370mm
503mm
External Width
600mm
External Depth
390mm
500mm
390mm
500mm
Internal Working Depth (max)
340mm
450mm
340mm
450mm
Weight
12.2Kgs
14.4Kgs
15.2Kgs
17.4Kgs
Static Loading (includes weight of cabinet)
60Kg
Mounting Profiles
Front and Rear
Colour: |
Our range of 500mm deep wall mounted cabinets have been redesigned and refreshed to offer users’ even better value for money, through better access, quicker and easier installation and improved aesthetic.
These wall mount data/comms cabinets are ideal for small network installations. The Data Racks have 19" mounting profiles at the front and rear of the cabinet, allowing easy installation of standard rackmount equipment.
Cable access is provided top and bottom, and the front door and side panels are lockable so that unwanted hands can't tamper with the equipment inside the Data Cabinet.
Features:
Available in both Grey (RAL7044) and Black (RAL9004)
Quick release front door - Fixed and released using a simple spring loaded pin
Lockable, removeable side panels - Fixed and released using simple slam latch handles
Two sets of adjustable 19” profiles - Allows easy installation of a variety of product, shelves and power distribution
Weight (KGS) 14.4
Static Loading (KGS) 60
Accessories are available on the following pages:
PDU's
Shelves
Cable Management
Please Note: Castors are not compatible with wall mounted cabinets.
Highlights
The 9u 500mm wall mounted cabinets are available in Grey (RAL 7044) or Black (RAL 9004)
Quick Release Side removable and lockable panels on both sides
Adjustable 19 inch front and rear mounting profiles with "u" markings
Top and bottom cable entry for easy patching
Alternative Product
9u 390mm Deep Wall mounted Data Cabinet
Too Deep? Go for the 390mm version instead.
6u 390mm
6u 500mm
9u 390mm
9u 500mm
External Height
370mm
503mm
External Width
600mm
External Depth
390mm
500mm
390mm
500mm
Internal Working Depth (max)
340mm
450mm
340mm
450mm
Weight
12.2Kgs
14.4Kgs
15.2Kgs
17.4Kgs
Static Loading (includes weight of cabinet)
60Kg
Mounting Profiles
Front and Rear
Colour: |
These 600mm Deep Wall Mounted Server Racks are ideal for small network installations where both Servers and Patching are require. The additional depth offers increased versatility and the 600mm width gives ample space for cable management.
Cable access is provided top and bottom, and the front door and side panels are lockable so that unwanted hands can't tamper with the equipment inside the Data Cabinet.
Features:
Lockable Glass Front Door in Steel Surround
Removable and Lockable Steel Side Panels
Adjustable 19" Profiles Front & Rear
Cable access holes, with gland plates top and bottom
Earth Bonding Kit
Weight (KGS) 17
Static Loading (KGS) 60
Accessories are available on the following pages:
PDU's
Shelves
Cable Management
Please Note: Casters are not compatible with wall mounted cabinets.
Highlights
The 9u 600mm wall mounted cabinets are available in Grey (RAL 7044) or Black (RAL 9004)
Quick Release Side removable and lockable panels on both sides
Adjustable 19 inch front and rear mounting profiles with "u" markings
Top and bottom cable entry for easy patching
Alternative Product
9u 500mm Deep Wall mounted Data Cabinet
Too Deep? Go for the 500mm version instead.
Colour: |
These 2 section 600mm deep wall mount data cabinets are designed with versatility in mind. When mounted on the wall, the cabinet can swing open, providing access to the rear of the cabinet for easy installation and maintenance of equipment. Lockable and removable side panels also provide easy access to the cabinet.
Cable entry is provided top and bottom of the cabinet and also in the rear swing section.
Features:
Welded construction
Lockable glass front door in a steel surround (over 180 degree door opening with quick release pins)
19" Adjustable Mounting Profiles front and rear
Cable entry points top and rear with gland plates
Lockable/removable side panels
Weight (KGS) 23
Static Loading (KGS) 60

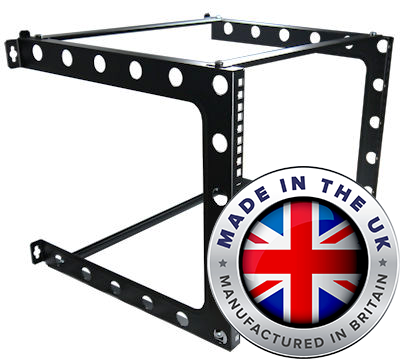

19-inch Open Frame Wall Mount Network/Data Racks are designed to be robust, economical and wall mount.
Manufactured in the UK - 1.5mm steel
Finish is fine textured black
Heavy duty frame able to take up to 90 kilo’s (with secure wall fixing)
Supplied flat pack
Easy to assemble
Dimensions
6u
9u
12u
300mm Depth Opt
450mm Depth Opt
300mm Depth Opt
450mm Depth Opt
300mm Depth Opt
450mm Depth Opt
Overall Height:
287mm
287mm
420mm
420mm
555mm
555mm
Overall Width:
500mm
500mm
500mm
500mm
500mm
500mm
Overall Depth:
300mm
450mm
300mm
450mm
300mm
450mm
Internal Working Depth:
250mm
400mm
250mm
400mm
250mm
400mm
*Please note* Image shows 9u style rack.
Cabinet Height: | |
Cabinet Depth: |
